530P Parallel AC Surge Protector

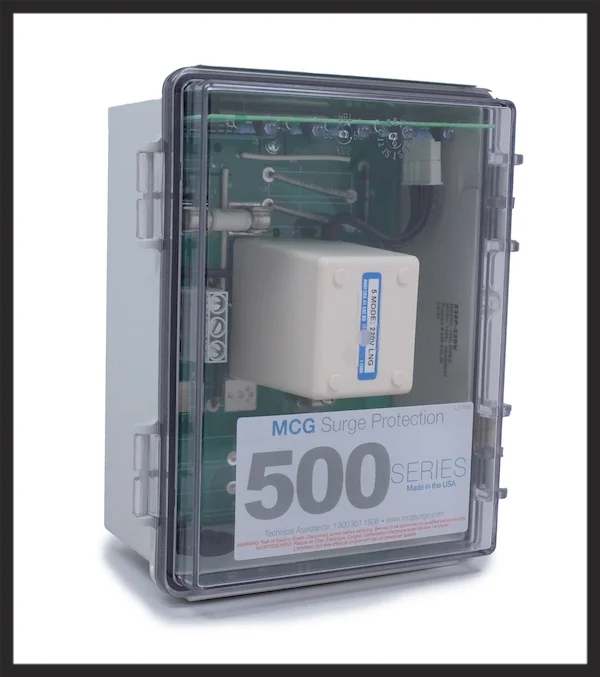

500 Series Web.jpeg

Single Phase Parallel AC Surge Protector

The 530P is a versatile protector that is optimized for single phase applications up to 240VAC. Low impedance construction results in superior protection due to low let-through levels, without sacrificing reliability. At the heart of the protector is our new, all mode, single phase protection module. Protection components are thermally protected to ensure safety and are continuously monitored by dedicated status indicators. The 530P comes in an indoor/outdoor rated, corrosion-resistant compact enclosure. It can be wired to a service panel or can reside near or within the protected equipment as a dedicated protector.

Features

  • Smallest Modular AC Unit Available by MCG
  • UL Listed 1449 4th Ed.
  • Low Impedance Construction
  • Employs new 20kA high headroom varistors
  • Field-replaceable module
  • EMI/RFI noise filtering: optional enclosure-free
  • Continuously monitored protection circuit
  • Dedicated status LED for each protection component
  • Optional beeper and status relay with mute
  • NEMA 4X indoor/outdoor enclosure




20 Year No-Nonsense Warranty.
Lifetime on Replaceable Modules.


Popular Applications Include:

  •   Irrigation controls/satellites
  • Gate controls
  • Greenhouses
  • Kiosks
  • Bank ATMs
  • Signage
  • Pool and hot tub equipment
  • Electric vehicle chargers
  • Golf cart chargers



  • Telecom equipment
  • OEM equipment
  • A/V protection
  • Local panel protection
  • Dedicated equipment protection
  • Equipment sheds
  • Small generator load protection

For more information, help with applications, or to purchase the
MCG 500 Series, contact us, or your local sales representative.
